Healthy pallet strapping machine system with ergonomic,easy and efficiency. Electrical driven with wheels plus chainlength to ensure enough the most flaxibility for multi pallet strapping without human bending and walking around.

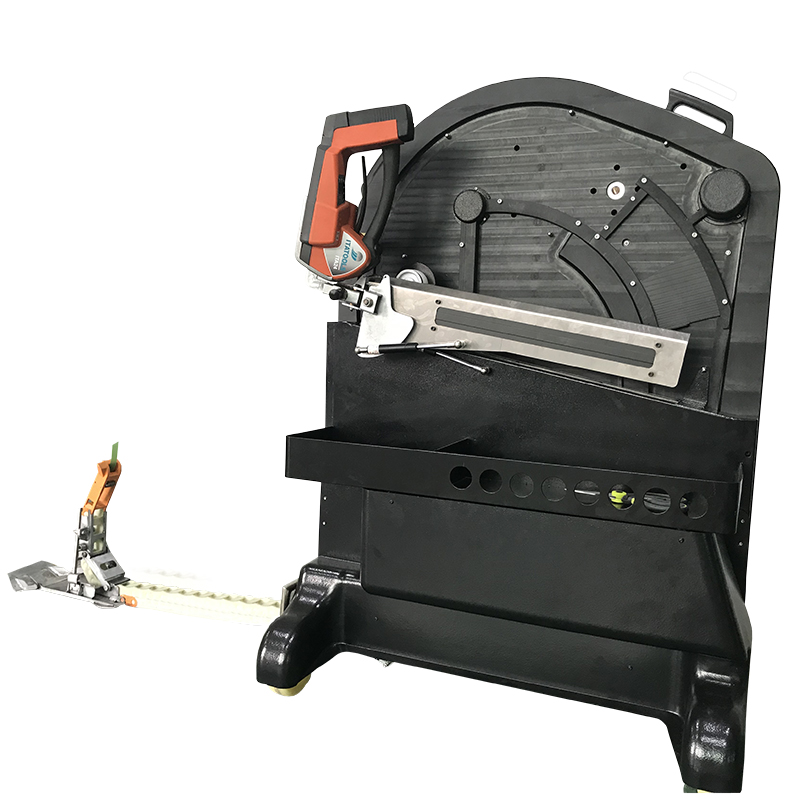

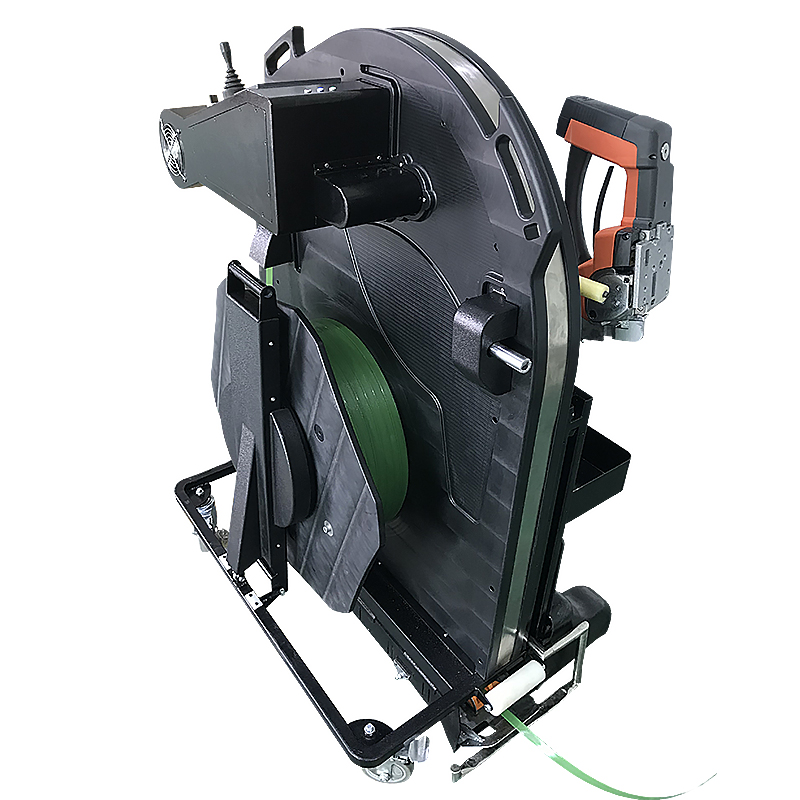

TP-800 Taolepack Mobile Pallet Strapping Feeding Machine wtih PET banding
Ergonomic pallet strapping machine with electrically driven chain lance via motor is a hot product in packing industry.It can make you have an elegent way for strapping without bending down ,which is a comfortable way by one person from one side only. Just roll the strapping machine in front of the pallet. Then the Chainlance pulls the strap through under the pallet and up again on the rear side and over the pallet. The strap is tensioned and welded securely by the sealing head. Mobile pallet strapping system is widely used for heavy duty products & pallets or high pallets which is reducing labor force.
Specifications for TP-800 Pallet strapping machine
TP-800 Pallet Strapper | |
Chain Length | 9.3 meters |
Packing Size | 200mm≤Width≤2 meters 75mm≤Height ≤2.6 meters Customized for 3 meters height |
Applicated Material type | PP Strap / PET Strap |
Applicated Strap Width | 12-19mm |
Applicated Strap Thickness | 0.6-1.3mm |
PP/PET Loading Sizes | PP CORE DIA 200mm, Height 180mm PET CORE DIA 406mm, Height 150mm |
Chain Speeds Horizontally | Moving Out 40m/min / Moving In 54m/min |
Chain Speeds Vertically | Moving Out 60m/min / Moving In 44m/min |
Setting Up Mode Strap Speed | Moving Out 20m/min / Moving In 16m/min |
Max China Thrust | 320 N |
Noise Level | 79 dB(A) |
Machine Weight | N.W 100 KGS G.W 120KGS |
Machine Size | L950 * W 750 * H 1250mm |
33V Lithium Battery | Weight 10 KGS, Capacity： 33.3V/ 32Ah Voltage 33.6V， Current 10-45A Approx 150-400 Strap per charge Charging Time: Approx 3.5 hours Life Time: Upto 2000 Charges |
3 Stage Lead Charger | Working Temperature 5 -45 ℃ Working Humidity:90%(4±2 ℃） Storage Temperature(-40~70 ℃） Atmosphere Pressure (70-106℃） Input AC100-240V,50-60Hz Output DC 33.6V 10A MTBF ≥50000H |
Main Features for TP-800 pallet strapping system
1. Elegant operation via touchscreen and joystick with intuitive user guidance
2.Mobile type for easy moving and heavy duty pallets.
3.Easy going and comfortable handling with ergonomically shaped handles
4. Fully covered for increased working safety in classy design
5.Auto strapping, feeding and sealing
6.3 times higher efficiency
7.The pallet width is adjusted not mechanically by touch screen
8.Applicable for object : Width below 2000mm,height below 3000mm
9.Number of strapping: 400 to 600 per charge
