Automatic stretch pallet wrapping machines work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet.

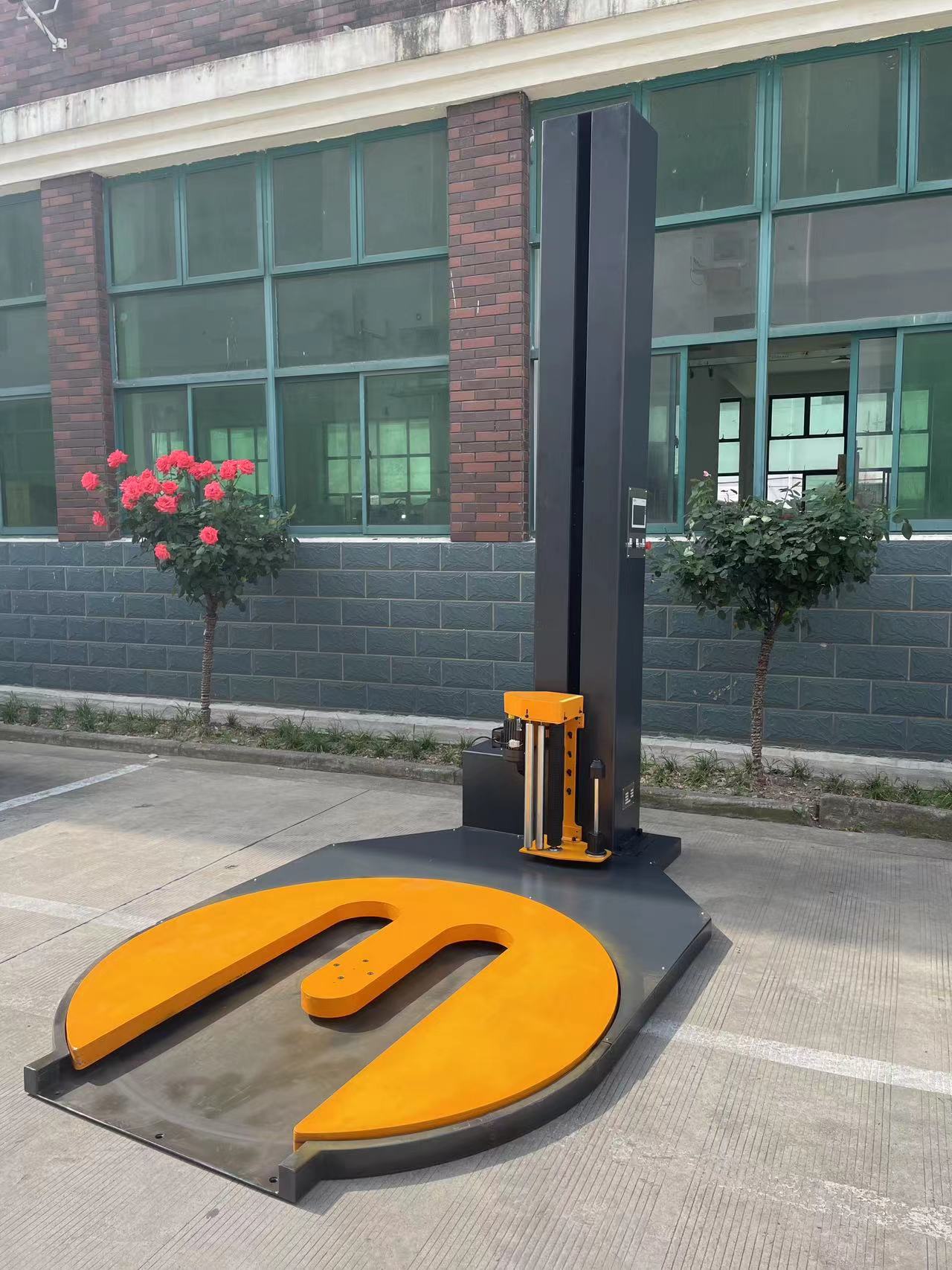

TP-1650F Automatic Pallet Film Wrapping Machines
Automatic stretch pallet wrapping machines work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet, the stretch film provides extra support while the products being transported or stocked so that they do not tip, spill, or otherwise damage.It is widely used in chemical industry, electronic industry, building materials, home appliances, paper making, foodstuff & drinks,glass products, hardware tool, electric product, paper, ceramic,chemical, food, beverage,building material and so on especially the container goods transportation in foreign trade..Improve logistic efficiency, reduce goods loss during transporting, has waterproof, dustproof, reduce product cost, improve packaging grade.
Specifications for TP-1650F Automatic Pallet Film Wrapping Machines
| Model | TP-1650F Automatic pre-stretch film wrapping machine |
| Wrapping product size | L(500-1200) mm * W(500-1200)mm |
| Wrapping height | L type:1800mm H type:2400mm Y type:2800mm |
| Packing efficiency | 20-40 pallet/h |
| Rotary speed | 0~12rpm rotary speed, adjustable, steady start and stop |
| Turntable size | Dia:1650mm Height:78mm |
| Turntable weight capacity | 2000kgs |
| Film carriage system | Pre-stretch film carriage, pre-stretch up to 250%, |
| automatic transport film | |
| Up and down upright | Double chain structure, adjustable up and down speed by transducer |
| Control system | PLC programmable |
| Machine weight | 750kg |
| Machine size | 2745mm*1650mm * (2260-3260) mm |
| Power | 220V 50 HZ 1.5KW Turntable Motor 0.75KW, Fillm Motor 0.37KW, Column Motr 0.37KW |
Features for TP-1650F Automatic Pallet Film Wrapping Machines
1.Heavy load capacity
2.Variable turntable speed and film carriage up down speed
3.Manual/auto exchange
4.PLC control,wrapping cycle can setting,more economic
5.Pre stretch film carriage,save more stretch film
6.Soft start,soft stop
