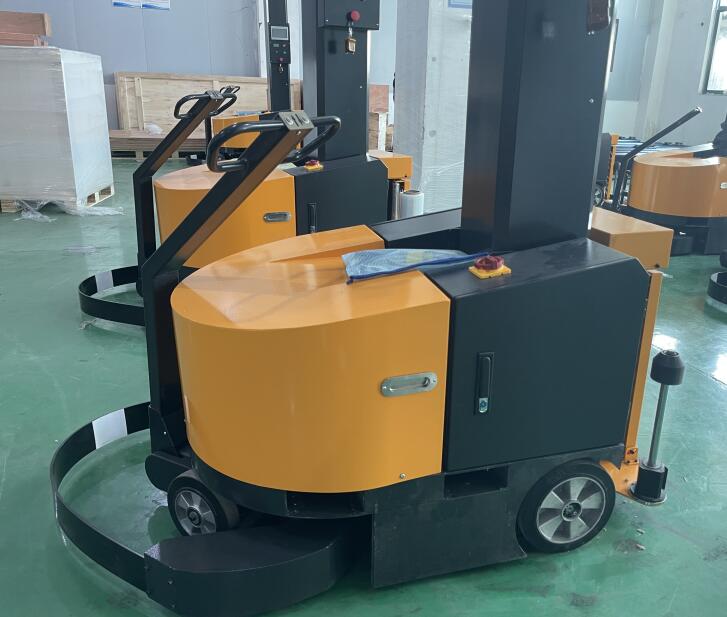

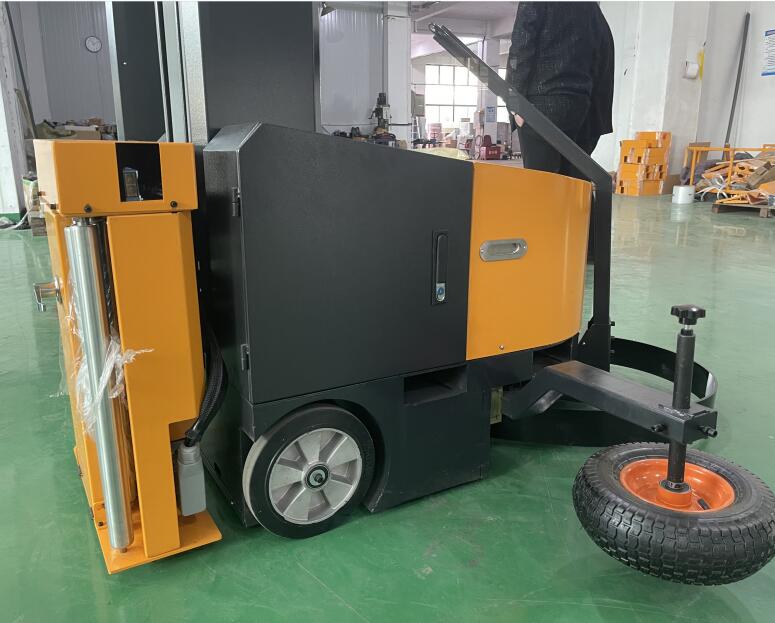

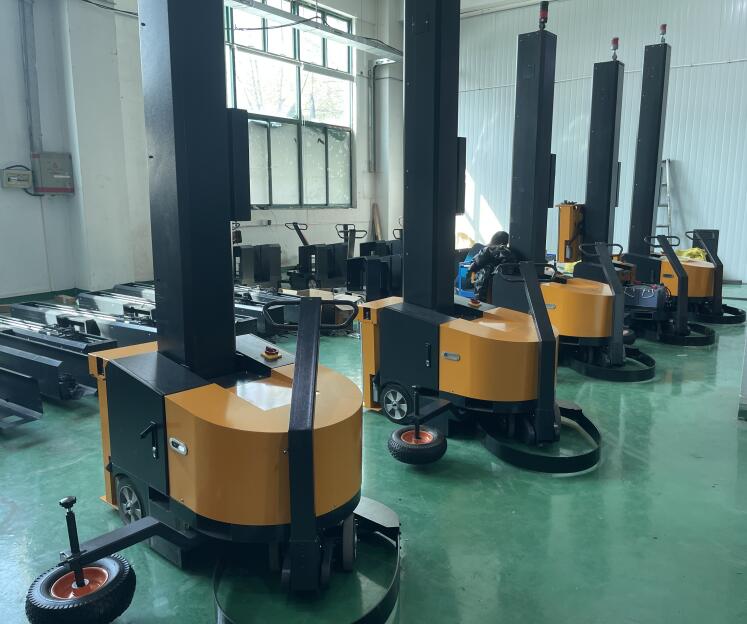

TP-600 Automatic Mobile robotic pallet wrapper wrapping machine

Mobile robotic stretch pallet wrappers are ideal for both standard and non-standard size pallet loads. The machine works by placing the guide tire against the pallet or if necessary against the load. To position the guide wheel, use the drive button on the handle of the machine until it is properly aligned.It is suitable for heavy goods or special-shaped pallets. The pallet is stationary on the ground. The mobile robot pallet wrapper automatically rotates 360 degrees around the pallet to automatically detect the height of goods. The wrapping height of the standard machine can reach 2.4m and the maximum customized height can reach 2.8m. The mobile robot pallet wrapper adopts PLC control system, and the performance of the whole machine is stable.

Specifications for TP-600 robot pallet wrapper

Model No.	TP-600 Mobile Robot Pallet Wrapper
Battery & Power	DC 24V 120 Ah 2pieces(each battery 12V)
Battery with MSDS certificate and CE certificate	Yes,also with transportation identification certificate
Control panel	Touch screen
Control system	PLC
Max wrapping height(standard machine)	2.4 Meters
Moving Speed	90m/min
Continuous working time	200-300 pallets Per Charge
Pallet size	Min L600*W600mm, Max no limit
Suitable for film roll	LLDPE Film  Wide ≤500mm inner diameter 76mm OD ≤ 250mm
Noise	≤ 75 DB
Environment	Humidity≤ 98%,Temp -10 ~ 40℃
Voltage	AC100-240V 1Phase 50/60Hz
Machine size	L1610*W1253*H 2800mm
Machine weight	410kg

Characteristics for TP-800 Automatic pallet wrapping machine

• Photoelectric detect pallet height up 2.4m.
• Rotating speed adjustable,accurate resetting after wrapped.
• Die carrier up and down speed can be adjustable.
• There has emergency switch in front of the machine to avoid run into the wrapping.
• PLC control system will be more stable
• Wrapping number of turns can be setting, bottom:adjustable 1-9 turns; up: adjustable1-9 turns.
