Affordable semi-automatic rotary arm stretch wrapping machine designed for unstable and heavy products.The machine can be installed in a flexible way, can be placed on the wall, can also be fixed by bracket.

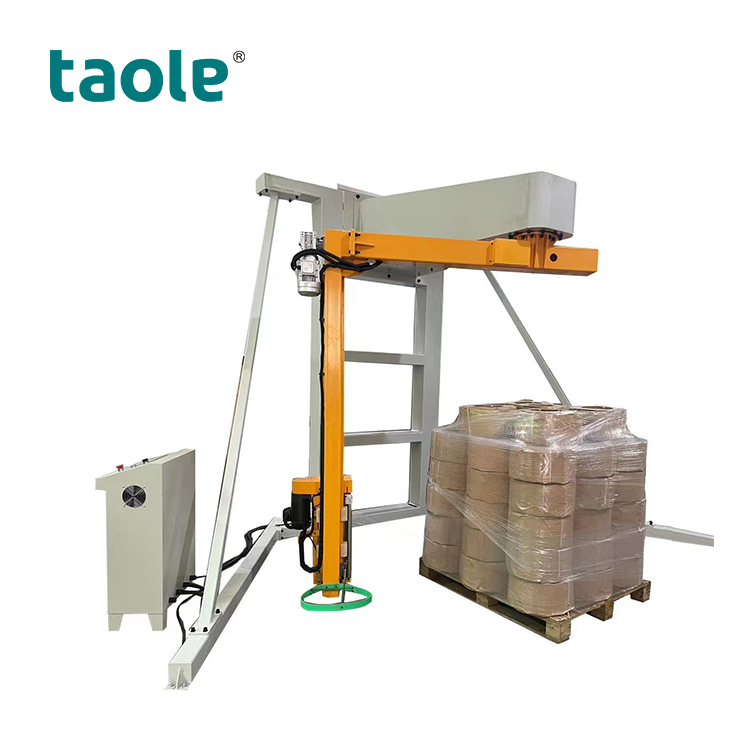

TP-1800FR Semi-automatic rotary arm stretch wrapping machine
Affordable semi-automatic rotary arm stretch wrapping machine designed for unstable and heavy products.Mainly applicable to food, beverage, chemical, paper, building materials and other industries in light or heavy goods overall wrapping. Its packaging cost is low, high efficiency. The machine can be installed in a flexible way, can be placed on the wall, can also be fixed by bracket. products are being transported&storaged to protect them from tip,spill or become damaged.Additionally,wrapped loads can easily be separated and identified.We can use as single machine or online equipment to realize the automatic packaging and transportation of goods.
Specifications for TP-1800FR Semi-automatic rotary arm stretch wrapping machine
Model No. | TP-1800FR Rotary arm stretch wrapping machine | |||
Packing Size | Width 500-1200mm Length 500-1200mm |
|||
Pallet Height | 2000mm | |||
Wrapping Efficiency | 20-40 Pallets/hour | |||
Rotation Speed | 0-15rpm Adjustable | |||
Rotary System | Auto Reset, Sensitive Braking | |||
Frame System | Prestretch 250% Speed adjustable | |||
Lifting Column | Lifting Speed Adjustable | |||
Control System | PLC Control Adjustable on wrapping layers & times Auto sense on pallet height |
|||
Machine Size | 3760*2000*3220mm | |||
Machine Construction Optional |
Rotary Wrapping Machine Body Gantry bracket 4.2meter Power Transit line Optional Auto film Breaking system Optional |
